💼Briefing Document: Gallery Protect System

Summary

The first layer of defense is established at the server level via Apache .htaccess rules, which intercept unauthorized requests, redirect traffic to an authentication gate, and block direct browser access to sensitive data files such as users.txt and global_activity.log. The second layer consists of PHP session logic, which uses a "Kill Protocol" to terminate page execution instantly if a valid session token is not present. A key architectural feature is Namespace Isolation, which prefixes all session variables with a unique folder ID, allowing multiple independent galleries to operate on the same server without session conflicts.

The system utilizes a flat-file database (users.txt) for user credentials, employing atomic file-locking (LOCK_EX) to prevent data corruption during password changes. It features robust Unicode-aware validation to support international characters while maintaining database integrity. Integration with content systems like the h5ai gallery is achieved through JavaScript injection, while custom HTML projects are secured using a protect.php gatekeeper script. Common operational challenges, such as path resolution errors and aggressive browser caching, are addressed with specific troubleshooting protocols, including "Hard Refresh" procedures and "Version Bumping" for static assets.

System Architecture and Core Principles

The Gallery Protect system is built on a "Synchronous Gatekeeping" strategy, which uses the server's file system and session memory to create a robust, multi-layered security perimeter. This approach avoids the overhead of a database server.

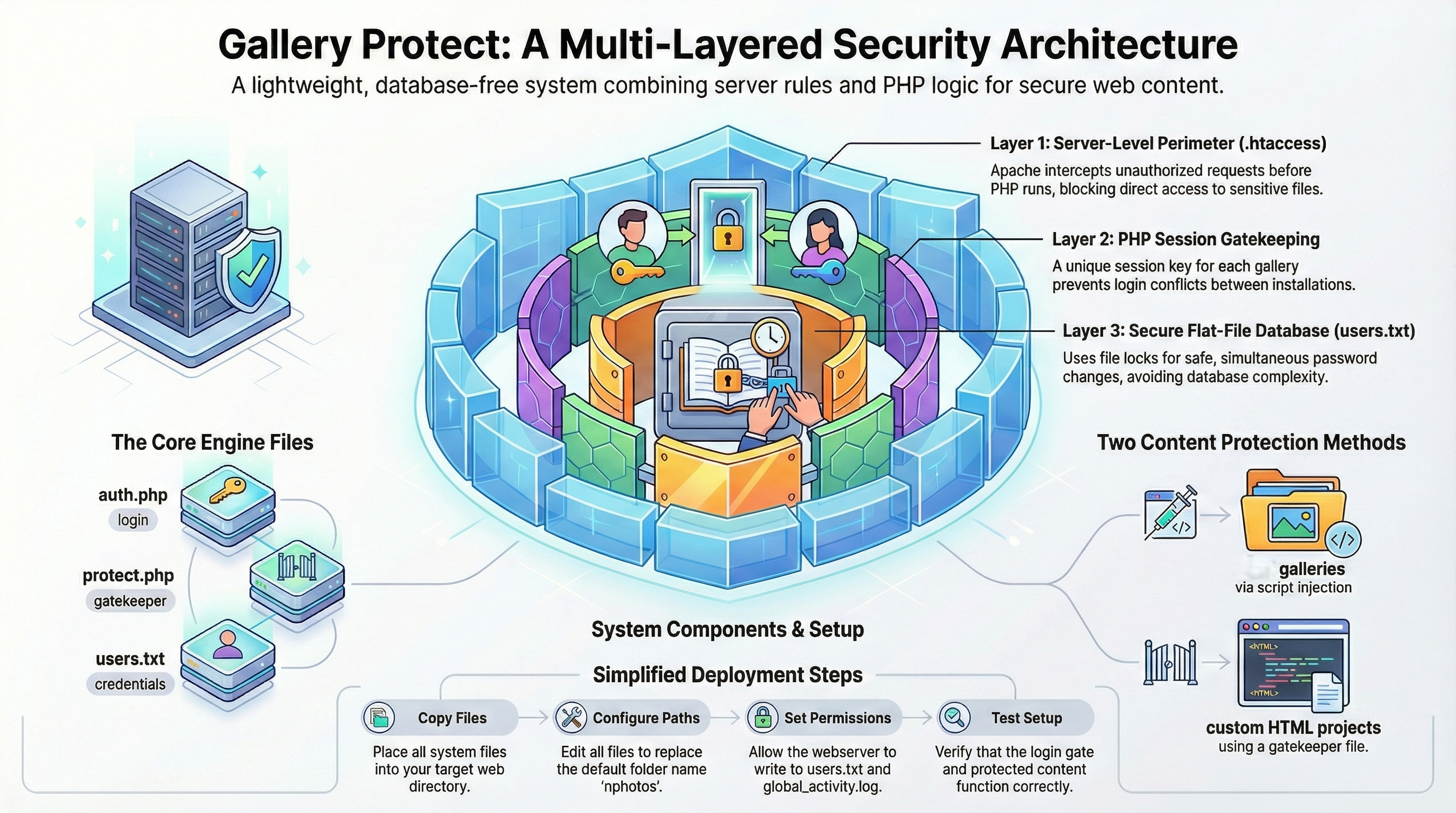

Multi-Layered Security Model

The system's defense is structured in three distinct layers, processing each request sequentially.

• Layer 1: The Request Interceptor (.htaccess) This is the "Hard Perimeter" managed by the Apache web server, acting before any PHP code is executed.

  • Traffic Rerouting: It intercepts 403 Forbidden errors and redirects all unauthorized traffic to the central auth.php login gate.

  • Resource Stealth: It explicitly denies direct HTTP requests for sensitive data files, including users.txt (credentials) and global_activity.log (activity log), ensuring they cannot be accessed even by authenticated users via a direct URL.

• Layer 2: Namespace Isolation & Session Logic This layer is managed by PHP and is responsible for stateful authentication.

  • Namespace Isolation: To support multiple, independent gallery instances on a single server (e.g., /photos/, /vacation/), all session keys are dynamically prefixed with a unique folder ID defined in config.php ($MY_FOLDER_ID). This prevents session "cross-talk" between instances.

    • auth_[folder_id]: The primary validation token.

    • active_user_[folder_id]: The identity token holding the username.

    • last_page_[folder_id]: A memory token to return users to their last visited page after login.

  • The "Kill" Protocol: Every protected page must include the auth.php engine as its first line. This script checks for the existence and validity of the auth_ session key. If the key is missing or expired (default 24 hours), the script immediately executes exit;, terminating the process and preventing any protected content from being sent to the browser.

• Layer 3: The Flat-File Database (users.txt) The system uses a simple text file for credential storage, optimized for speed and integrity.

  • High-Speed Parsing: Credentials are read into memory and parsed using PHP's explode(':', $line) function, enabling rapid lookups without a persistent database connection.

  • Atomic Integrity: Password updates are performed using an exclusive lock (LOCK_EX) on the users.txt file. This prevents race conditions where simultaneous writes could corrupt or empty the file.

  • Sanitization: Usernames are normalized to lowercase for case-insensitive matching, while passwords remain strictly case-sensitive and support Unicode characters.

Core Components and File Manifest

The system is composed of several key PHP scripts, configuration files, and data stores that work in concert to provide access control.

Security Implementation via .htaccess

Server-level .htaccess configurations are critical to the system's security, providing preemptive protection for sensitive data and content.

• Root Directory (/.htaccess):

  • Configures the server to redirect all 403 Forbidden errors to the system's master authentication gate: ErrorDocument 403 /nphotosjj/auth.php?error=403.

• System Core (/nphotosjj/.htaccess):

  • Data Protection: Blocks all direct web access to files with .txt, .log, .conf, .sh, and .inc extensions.

  • Asset Whitelisting: Explicitly permits access to necessary web assets like .php, .jpg, .png, .css, and .js.

  • Anti-Caching: Sets headers (Cache-Control: no-cache, Pragma: no-cache, Expires: 0) for dynamic assets (.php, .js, .css) to prevent browsers from serving stale session states or UI components.

• Protected HTML Content (/protected_html/.htaccess):

  • Fragment Protection: Implements a specific rule to deny direct browser access to files ending in _content.php. This prevents users from bypassing the protect.php gatekeeper and viewing content fragments directly, while still allowing the server to include them via PHP.

• h5ai Albums (/nphotosjj/albums/.htaccess):

  • Anti-Hotlinking & Deep-Link Protection: This configuration protects media files (images, videos, documents) from being directly accessed or embedded on other sites. It checks the HTTP_REFERER and redirects requests to an access_denied.php page if the referrer is missing or does not match the allowed domain.

User and Session Management

The system includes detailed logic for handling user credentials, password changes, and session state across various user interactions.

Credentials and Password Management

• Validation Logic: The system uses a "Unicode-Aware Validation" layer. It employs mb_strlen($p, 'UTF-8') to correctly count characters in multi-byte strings (e.g., Swedish åäö) and uses a Unicode-enabled regular expression (/^[^\s:]+$/u) to permit these characters while strictly forbidding spaces and the colon (:) delimiter.

• Atomic Updates: The change_password.php script writes updated user data to users.txt using file_put_contents with the LOCK_EX flag, ensuring the write operation is atomic and safe from race conditions.

• Protected Accounts: User accounts can be marked as "Read-Only" in users.txt by appending a * to the username. The password change script detects this suffix and blocks any modification attempts for that account.

Session and Logout Logic

• Dynamic Logout: The protect.php script unsets the last_page session variable before redirecting the user back to the current URI, ensuring a clean state. The global logout.php script redirects users to their last visited page, unless the logout was triggered from the monitoring dashboard (?from_monitor=1), in which case it returns to the dashboard.

• Multi-Tab Session Suppression: To prevent background AJAX polls from overwriting the user's intended return path, the user_info.php endpoint is explicitly prohibited from writing to the $_SESSION['last_page_nphotos'] variable.

System Integration and Administration

The framework is designed for integration with other web applications and provides tools for administration and troubleshooting.

Integration Methods

• h5ai Gallery (Native Injection): The system integrates with the h5ai gallery by including auth.php at the top of h5ai's main index file. The UI is enhanced via custom_ui.js, which polls user_info.php every 60 seconds to fetch the current user's identity and display it in the h5ai interface. The scripts and styles for this integration are loaded via options.json.

• Custom HTML (Gatekeeper Proxy): For standalone HTML projects, the protect.php script acts as a gatekeeper. It wraps content fragments (e.g., _content.php) within the security session, ensuring that only authenticated users can view the content.

Administration and Troubleshooting

• Monitoring: The monitor.php dashboard provides an administrative view of the global_activity.log. It features an "Auto-Trim" function that truncates the log to 2000 lines if it grows beyond 2200, and a "Smart Date" display that shows time only for today's entries and full date/time for older ones.

• Troubleshooting Caching Issues: Aggressive browser caching (notably in Microsoft Edge) can cause UI or logic changes in .js and .css files to not apply immediately. The recommended solutions are:

  1. Hard Refresh: Forcing the browser to bypass its cache (Ctrl+F5 or Cmd+Shift+R).

  2. Version Bumping: For a permanent, user-wide fix, incrementing a version query string in options.json (e.g., "custom_ui.js?v=10.62").

• Deployment and Cloning: A detailed checklist is provided for migrating or duplicating the system. This involves a search-and-replace operation across PHP files, .htaccess configurations, and h5ai bridge files to update the hardcoded folder ID ($MY_FOLDER_ID) and associated paths. A final permission audit on data and cache files is required.
